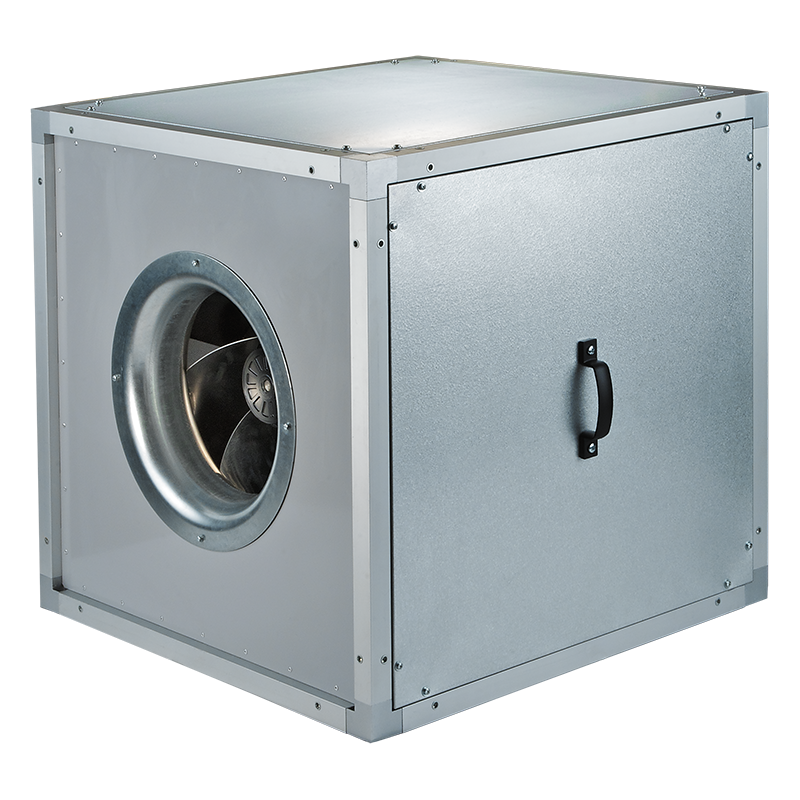

Series Blauberg Iso-V

Centrifugal inline fans in sound-insulated casings
  • Sound-insulated casing
  • Impeller type: Centrifugal impeller with backward curved blades
  • Casing material: Galvanized steel
Lineup Blauberg Iso-V Connected air duct size, mm Phases Rated power, W Maximum airflow, m³/h Article Number of speeds
355 3 230 2660 8016899 1
355 1 245 2890 8016905 1
400 3 515 3950 8016929 1
400 1 480 3750 8016936 1
450 3 740 5700 8016950 1
450 1 680 5630 8016967 1
500 3 1430 7940 8016974 1
500 1 1300 7330 8016981 1
560 3 2380 11340 8016998 1
560 3 780 7970 8017001 1
630 3 3310 15170 8017018 1
630 3 1310 12030 8037146 1
630 3 4250 16870 8017025 1
710 3 2000 15830 8038624 1
Datasheet
Iso-V - data sheet
1.91 Mb
Manual
Iso-V - user's manual
4.3 Mb
BIM/CAD-models
Iso-V.rfa
3.02 Mb
Iso-V - image 1
727 Kb
