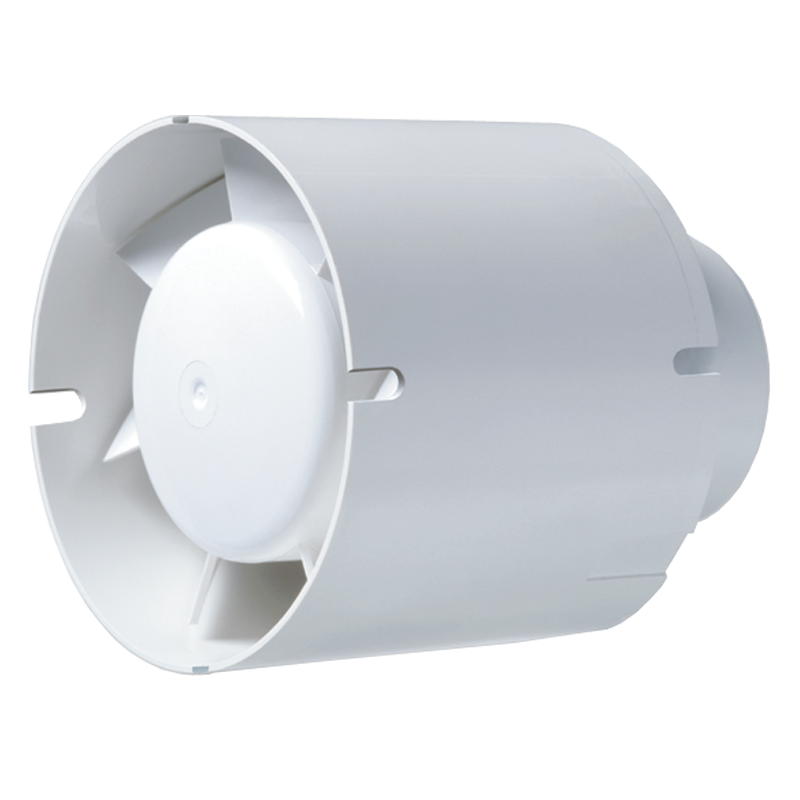

/ Product catalogue / Domestic ventilation / Residential inline fans / Inline Fans / Tubo / Tubo-U 150
| Unit of measurement | Tubo-U 150 | |
| Connected air duct size | mm | 150 |
| Phases | - | 1 |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50 |
| Rated power | W | 30 |
| Unit current | A | 0.13 |
| Maximum airflow | m³/h | 295 |
| Sound pressure level LpA at 3 m | dB(A) | 40 |
| Weight | kg | 0.8 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IPX4 |
| Impeller material | - | Plastic |
| Article | - | 8012020 |
| a | b | c | c1 | Ø d |
|---|---|---|---|---|
| 200 | 162 | 100 | 45 | 150 |
