Blauberg KOMFORT EC DBW 900-E L S21 DTV

Blauberg KOMFORT EC DBW 900-E L S21 DTV - Suspended heat recovery air handling units
Series: KOMFORT EC DBW
Suspended heat recovery air handling units
  • Sound pressure level LpA at 3 m: 33 dB(A)
  • Heat exchanger type: Counter flow
  • Extract filter: G4
  • Supply filter: G4 (F7 option)
  • Sound-insulated casing
  • Motor type: EC
  • Enthalpy heat exchanger
  • Bypass: Auto
  • Preheater: Optional
  • Reheater: Water
  • BMS protocol: ModBus
  • Control: Smartphone
  • Casing material: Aluzinc
  • Humidity sensor: Optional
  • CO2 sensor: Optional
  • VOC sensor: Optional
  • PM2.5 sensor: Optional
Unit of measurement KOMFORT EC DBW 900-E L S21 DTV
Phases - 1
Minimum supply voltage V 230
Maximum supply voltage V 230
Power supply frequency Hz 50/60
Rated power W 442
Unit current A 3
Maximum airflow m3/h 1030
Sound pressure level LpA at 3 m dB(A) 33
Heat recovery efficiency, max % 85
Heat exchanger type - Counter flow
Heat exchanger material - Enthalpy
Weight kg 112
Extract filter - G4
Supply filter - G4 (F7 option)
Transported air temperature (max) °С 40
Transported air temperature (min) °С -25
Ambient air temperature min °С 1
Ambient air temperature max °С 40
Ambient air humidity max % 60
Ingress protection rating - IP22
Ingress protection rating of the drive - IP44
Article - 8073366
Blauberg KOMFORT EC DBW 900-E L S21 DTV 52 930 2016
Trademark Blauberg
Model KOMFORT EC DBW 900-E L S21 DTV
Specific energy consumption (SEC) (kWh/(m2/a)) Cold Average Warm
-74.4 A+ -38.9 A -15.9 E
Type of ventilation unit Bidirectional
Type of drive installed Variable speed
Type of heat recovery system Recuperative
Thermal efficiency of heat recovery (%) 70
Maximum flow rate (m3/h) 930
Electric power input (W) 442
Reference flow rate (m3/s) 0.169
Reference pressure difference (Pa) 50
Specific power input (SPI) (W/(m3/h)) 0.261
Control typology Local demand control
Maximum internal leakage rates (%) 2.7
Maximum external leakage rates (%) 2.7
Declared typology RVU BVU
Sound power level (dB(A)) 52
The annual electricity consumption (AEC) (kWh/a) Cold Average Warm
720 183 138
The annual heating saved (AHS) (kWh/a) Cold Average Warm
8371 4279 1935
Datasheet
KOMFORT EC DBW - data sheet
2.23 Mb
Datasheet
KOMFORT EC DBW 900-E L S21 - energy label
83 Kb
Datasheet
KOMFORT EC DBW 900-E L S21 - specification
64 Kb
Manual
KOMFORT EC DBW 550 (900) - user's manual (B217-4EN-03)
3.07 Mb
Manual
KOMFORT EC DBW 2000 (3000) - user's manual (B225-2EN-05)
5.71 Mb
Manual
S21 - user's manual (B55-8EN-05)
626 Kb
BIM/CAD-models
KOMFORT EC DBE/DBW - BIM model
2.02 Mb
KOMFORT EC DBW 900-E L S21 DTV - image 1
315 Kb

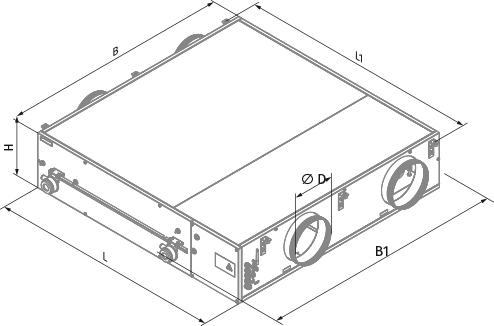

Ø D B B1 H L L1
249 1350 1485 317 1346 1395
For round ducts
Name Photo Description
Blauberg SD 250/600 SD 250/600 Silencers for round ducts
Blauberg SD 250/900 SD 250/900 Silencers for round ducts
Blauberg SD 250/1200 SD 250/1200 Silencers for round ducts
For round ducts
Name Photo Description
Blauberg VRV 250 VRV 250 Backdraft dampers with spring for round ducts
Blauberg VKA 250 VKA 250 Air dampers for round ducts
Electrical heaters
Name Photo Description
Blauberg EVH 250-1.2-1 S21 V.2 EVH 250-1.2-1 S21 V.2 Electric duct preheater for heat exchanger freeze protection
Blauberg EVH 250-2.0-1 S21 V.2 EVH 250-2.0-1 S21 V.2 Electric duct preheater for heat exchanger freeze protection
Blauberg EVH 250-3.0-1 S21 V.2 EVH 250-3.0-1 S21 V.2 Electric duct preheater for heat exchanger freeze protection
Mixing chambers
Name Photo Description
Blauberg WMG 3/4-4 WMG 3/4-4 Water mixing units
Blauberg WMG 3/4-6 WMG 3/4-6 Water mixing units
Blauberg WMG 1-6 WMG 1-6 Water mixing units
Blauberg WMG 1-10 WMG 1-10 Water mixing units
Blauberg WMG 1 1/4-10 WMG 1 1/4-10 Water mixing units
Blauberg WMG 1 1/4-16 WMG 1 1/4-16 Water mixing units
Blauberg WMG 1 1/2-16 WMG 1 1/2-16 Water mixing units
Blauberg WMG 1 1/2-25 WMG 1 1/2-25 Water mixing units
Blauberg WMG 2-25 WMG 2-25 Water mixing units
Blauberg WMG 2-40 WMG 2-40 Water mixing units
Control Panels
Name Photo Description
Blauberg S25 S25 LCD control panel
Blauberg S22 S22 Control panels
Blauberg S22 Wi-Fi S22 Wi-Fi Control panels
CO2 sensors
Name Photo Description
Blauberg CD-1 CD-1 CO2 sensors
Blauberg CD-2 CD-2 CO2 sensors
Humidity sensors
Name Photo Description
Blauberg FS2 FS2 Humidity sensor
Other accessories
Name Photo Description
Blauberg FP 647x274x20 G4 FP 647x274x20 G4 G4 panel filter
Electric actuators
Name Photo Description
Blauberg Belimo TF230 Belimo TF230 Electric actuators
