/ Product catalogue / Commercial and industrial ventilation / Inline fans / For rectangular ducts / Box-F / Box-F 1000x500 6D
| Unit of measurement | Box-F 1000x500 6D | |
| Connected air duct size | mm | 1000x500 |
| Phases | - | 3 |
| Minimum supply voltage | V | 400 |
| Maximum supply voltage | V | 400 |
| Power supply frequency | Hz | 50 |
| Rated power | W | 3870 |
| Unit current | A | 7 |
| Maximum airflow | m³/h | 9540 |
| Sound pressure level LpA at 3 m | dB(A) | 61 |
| Weight | kg | 95 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -20 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Galvanized steel |
| Trademark | Blauberg |
| Model | Box-F 1000x500 6D |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 590 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 43.2 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 2.01 |
| Sound power level (dB(A)) | 81 |

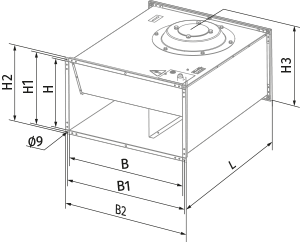

| B | B1 | B2 | H | H1 | H2 | H3 | L |
|---|---|---|---|---|---|---|---|
| 1000 | 1020 | 1040 | 500 | 520 | 540 | 580 | 954 |
