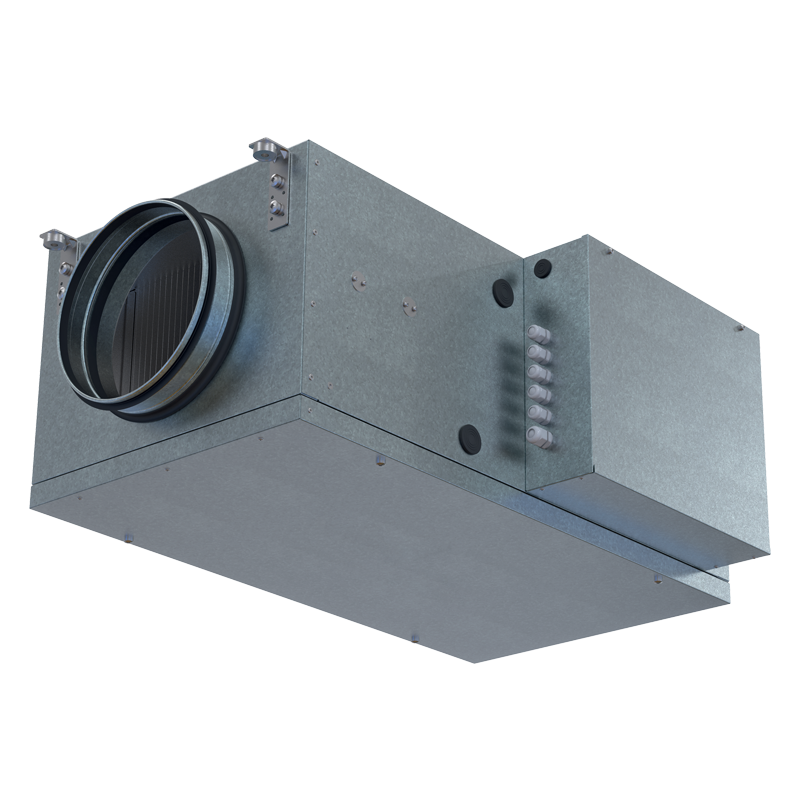

Blauberg Blaubox EC MW 700 S31

Supply ventilation units with a water heater

	Unit of measurement	Blaubox EC MW 700 S31
Connected air duct size	mm	250
Phases	-	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50
Rated power	W	139
Unit current	A	1.05
Maximum airflow	m³/h	800
Sound pressure level LpA at 3 m	dB(A)	44
Weight	kg	27
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-30
Ingress protection rating	-	IP22
Ingress protection rating of the drive	-	IP44
Article	-	8096976

Trademark	Blauberg
Model	Blaubox EC MW 700 S31
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-52.6	A+	-25.5	C	-10	F
Type of ventilation unit	Unidirectional
Type of drive installed	Variable speed
Type of heat recovery system	None
Maximum flow rate (m³/h)	700
Electric power input (W)	136
Reference flow rate (m³/s)	0.136
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.212
Control typology	Local demand control
Maximum internal leakage rates (%)	2.7
Maximum external leakage rates (%)	2.7
Sound power level (dB(A))	54
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	112		112		112
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	5536		2830		1280
