/ Product catalogue / Domestic ventilation / Residential inline fans / Inline Fans / Alphaceram / Alphaceram 100
| Unit of measurement | Alphaceram 100 | |
| Connected air duct size | mm | 100 |
| Maximum supply voltage | V | 240 |
| Minimum supply voltage | V | 220 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 14 |
| Unit current | A | 0.1 |
| Maximum airflow | m³/h | 90 |
| Sound pressure level LpA at 3 m | dB(A) | 33 |
| Weight | kg | 1.28 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP24 |
| Trademark | Blauberg | |||||
| Model | Alphaceram 100 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -28.7 | B | -12.3 | E | -2.9 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Single speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 90 | |||||
| Electric power input (W) | 14 | |||||
| Reference flow rate (m³/s) | 0.018 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.156 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Sound power level (dB(A)) | 53 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 195 | 195 | 195 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3355 | 1715 | 776 | ||||

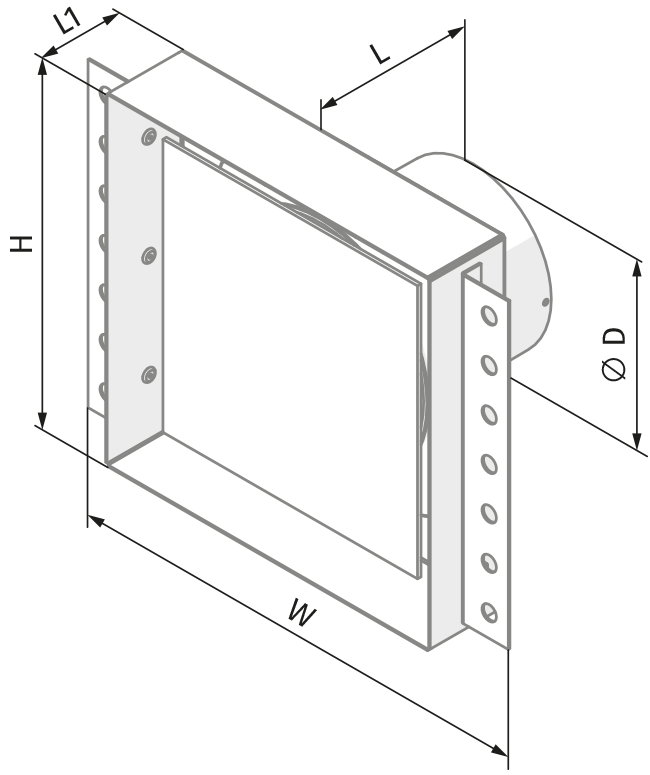

| ∅D | H | W | L | L1 |
|---|---|---|---|---|
| 99 | 204 | 264 | 86 | 48 |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDT E1.8 |
|
Thyristor speed controller |
