/ Product catalogue / Smoke extraction / Medium pressure and smoke extraction axial fans / Medium pressure axial fans / Axis-P

Series Blauberg Axis-P

Series Blauberg Axis-P - Medium pressure axial fans - Medium pressure and smoke extraction axial fans
Medium pressure axial fans
  • Impeller type: Axial
  • Casing material: Coated steel
Use

The fans are used:

  • as a part of a smoke extraction system for air pressurization to create a positive air pressure differential in stairway enclosures, airlock vestibules and lift shafts, to prevent spreading of smoke in premises, protect people using evacuation routes from fire hazards and enable conditions for fire-extinguishing measures.
  • in general ventilation systems in industrial, administrative and residential buildings.



Design
  • The metal casing with rolled flanges helps achieve outstanding rigidity and minimum clearances between the casing and the blades. There is an inspection hatch in the casing for easy maintenance.
  • All the casing components are powder coated for improved protection against the environmental effects.
  • The weight of the fans may differ from the one stated in the catalogue and depends on the components used (motor, terminal box, etc.).



Motor
  • The fans are equipped with three-phase (400 V/50 Hz) single-speed 2-, 4- or 6-pole electric motors.
  • Motor with energy efficiency class IE3 on request.
  • Motor ingress protection rating is IP55.
Impeller
  • Depending on the size and the required air capacity the fans are equipped with impellers with 6 or 8 blades angled from 20° to 50° with variation from 2.5 up to 5° to ensure precise matching of fans with the operating point.
  • The specially designed impeller blades ensure high efficiency of the fan while keeping noise well under control. The impellers are dynamically balanced. Low weight and low moment of the impeller inertia help reduce the fan start-up time.
  • The fan blades can be made of the following materials:
    • PAG – fiberglass reinforced polyamide
    • AL – aluminium
  • Please confirm the blade material while placing your order.



Mounting
  • The fans can be mounted on any flat surface or directly into a ventilation duct. The units are suitable for both horizontal and vertical configurations. In-duct installation requires flanges to attach the fan to the ductwork.
  • To attach the fan to the floor, the wall or the ceiling use the O-AF carriers (not included as standard, should be purchased separately).
  • The units are suitable for installation on rooftops to provide direct supply of outdoor air to the stairway areas.

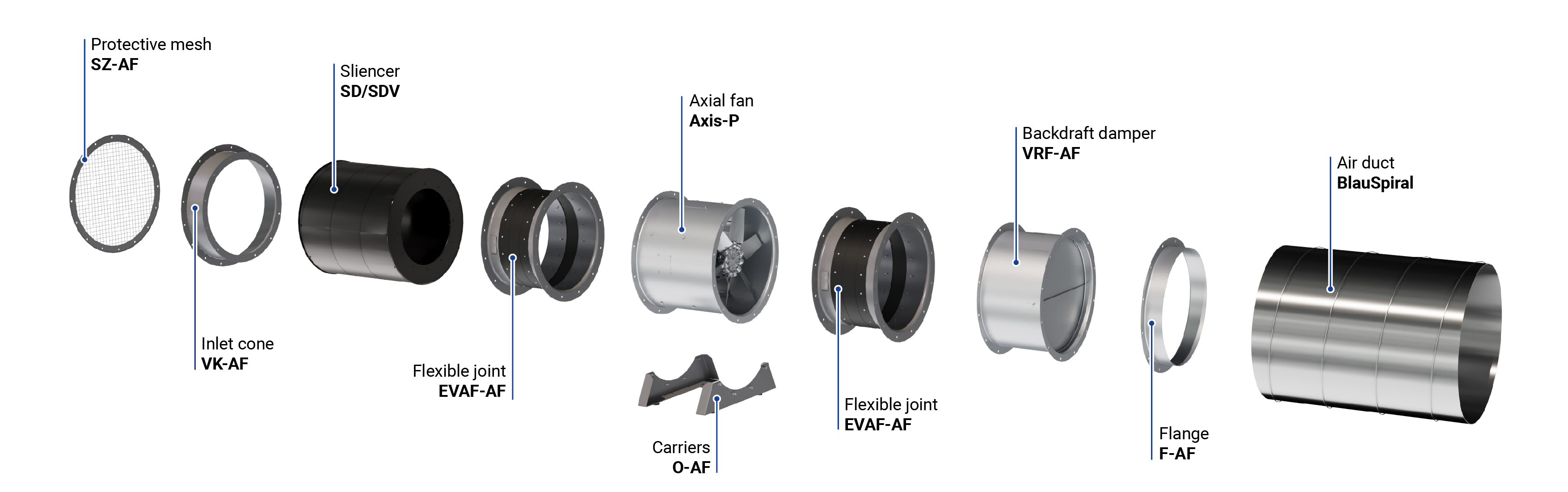

Complete solutions for axial fans

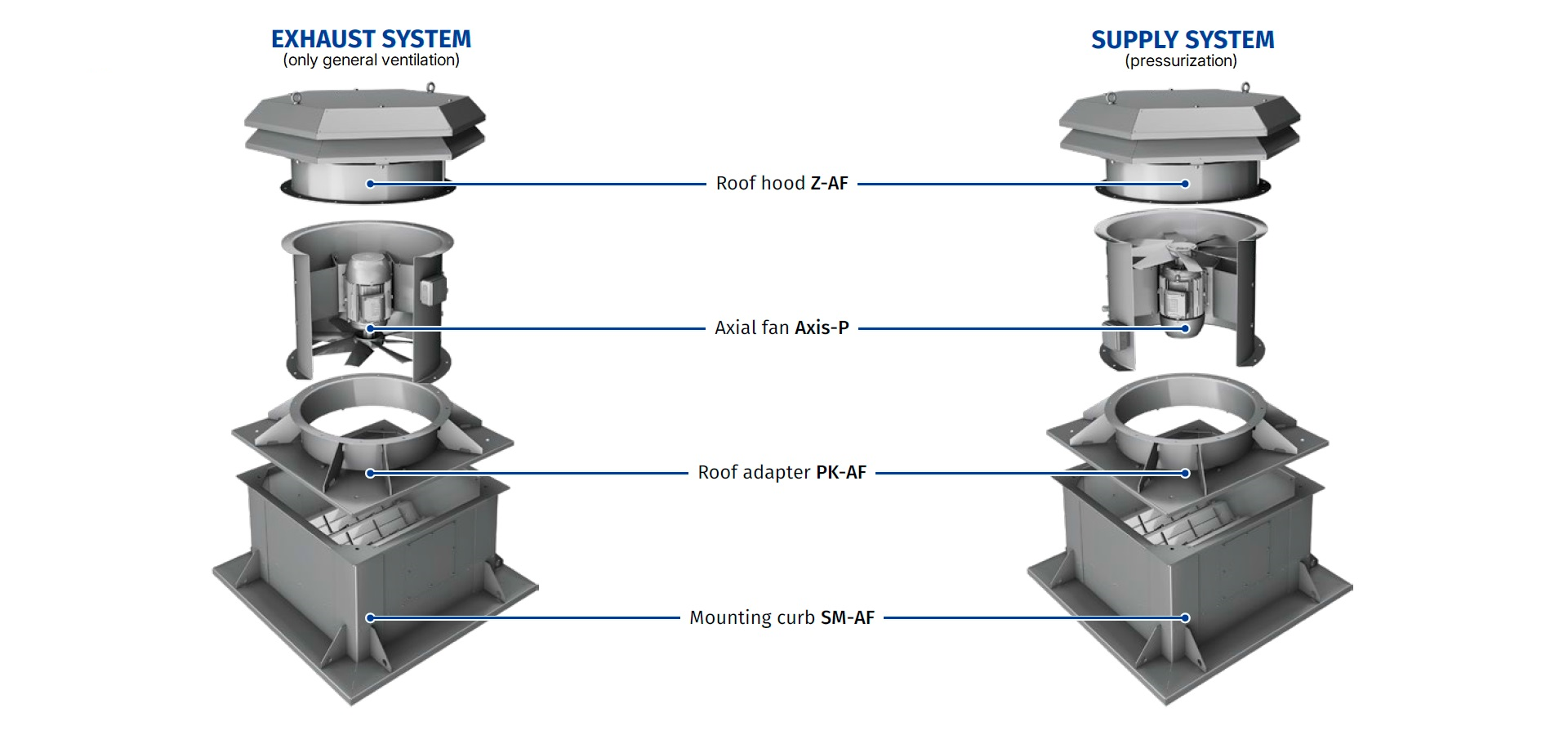

Installation example of axial fans on rooftop

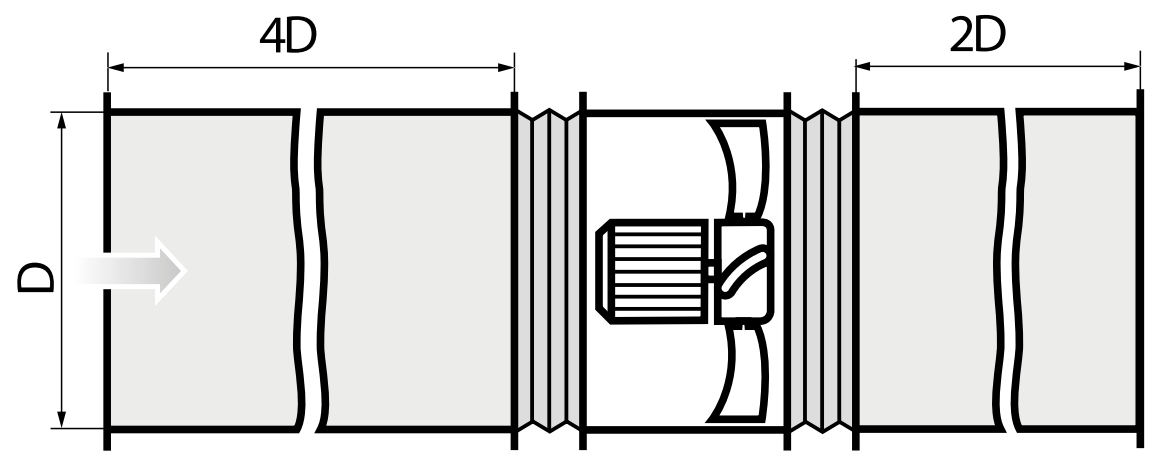

Fan installation into an air duct system
  • To ensure a uniform air flow, the fan should be preceded by a straight duct section with a cross-section area equal to half of that of the fan. The length of the duct section should be 3 ÷ 4 D (D is the inner diameter of the fan). The length of the straight duct section downstream of the fan should be 1.5 ÷ 2 D.
  • Reduction of the recommended duct length values results in a drop of the fan pressure and performance. To reduce noise and vibration, use the VVGF flexible joints.

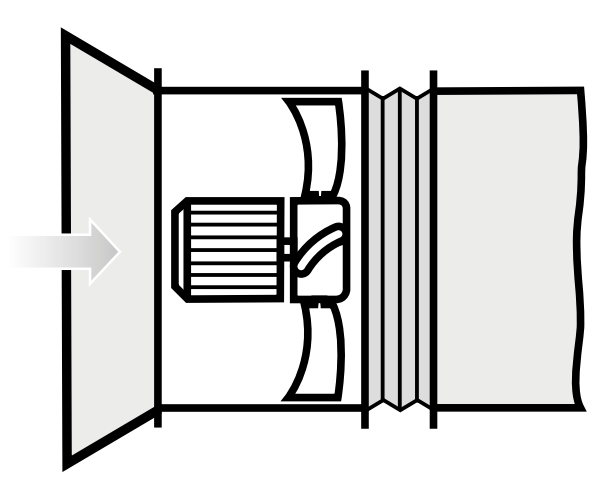

Fan installation with no upstream ducting
  • Axial fans without upstream ducting must be equipped with a VK-AF inlet cone to improve the air flow parameters.

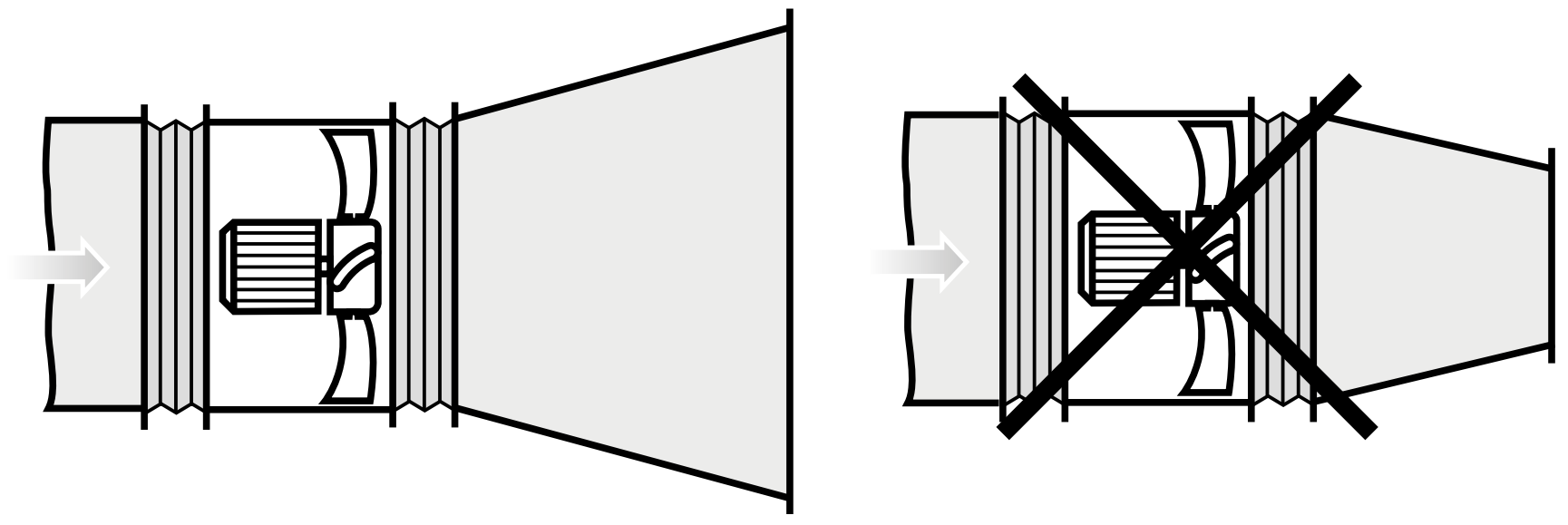

Fan installation with no downstream ducting
  • If the axial fan is a terminal device of the ventilation system (i.e. there is no downstream ducting), the unit must be equipped with a diffuser to reduce the air flow velocity and the fan dynamic pressure. Reduction of the air discharge velocity results in a significant reduction of shock losses which are proportional to the square of velocity decrement
  • The fan should not be equipped with a downstream contractor.

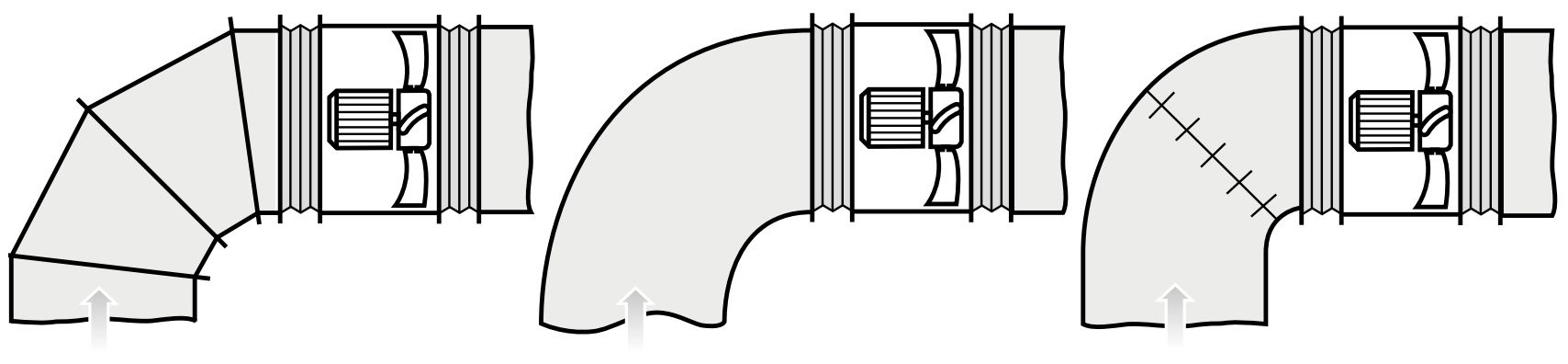

Installation near bends
  • To install the fan directly downstream of a bend (elbow), use a curved section with a large bending radius or an array of internal guide vanes.

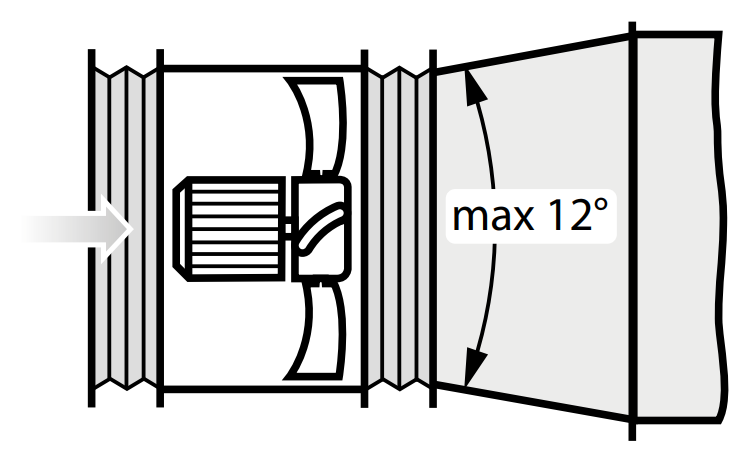

Changing diameter installation
  • When changing from a smaller diameter to a larger one use a connector diffuser with the maximum opening angle of 12°.

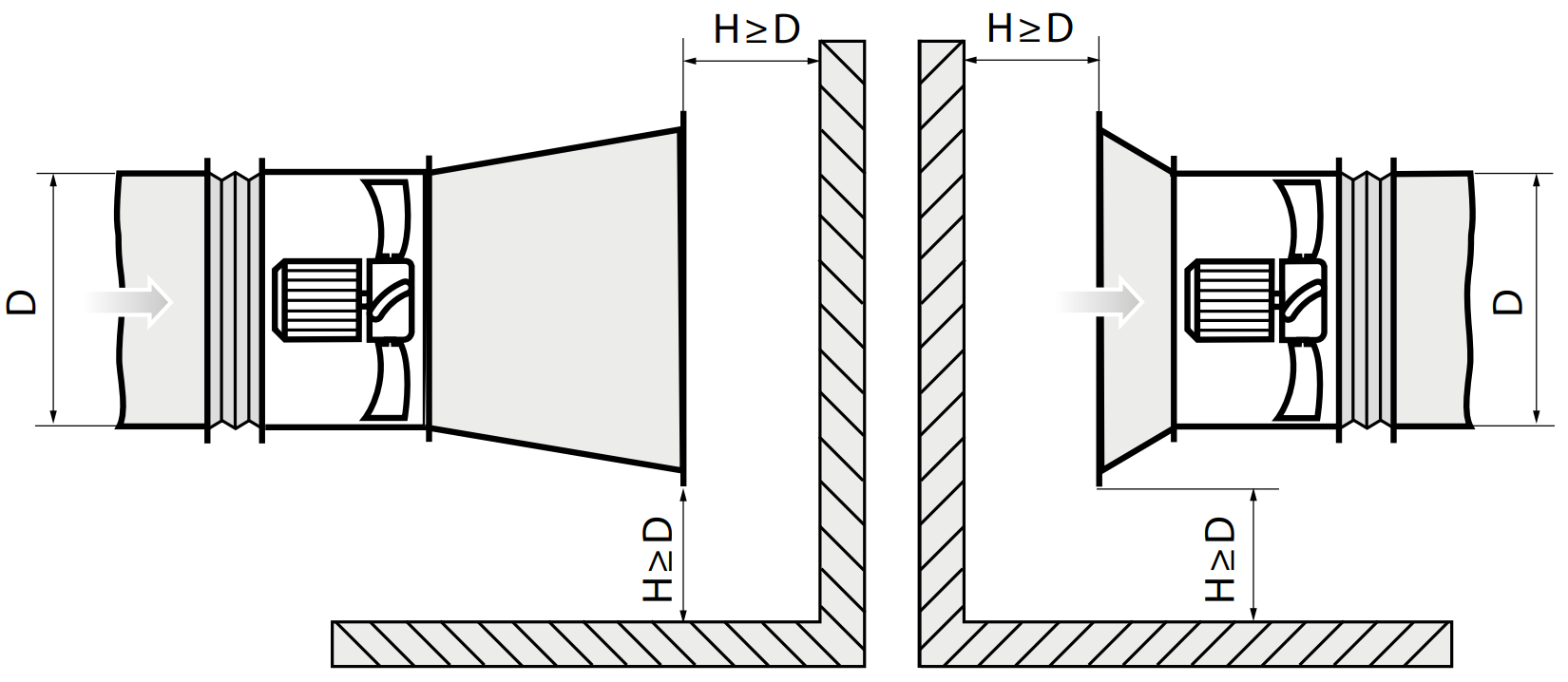

Obstructed space installation
  • To ensure normal operation of the fan in an obstructed space, make sure to provide for a sufficient distance between the inlet and outlet flanges and the floor, walls, bulky equipment and obstacles.

Lineup Blauberg Axis-P Connected air duct size, mm Rated power, W Maximum airflow, m³/h Number of blades, pcs. Blade setting angle, degrees Impeller material
Blauberg Axis-P 400-2D/0.55-6/25/AL Axis-P 400-2D/0.55-6/25/AL
400 550 5700 6 25 Aluminium
Blauberg Axis-P 400-2D/0.55-6/25/PAG Axis-P 400-2D/0.55-6/25/PAG
400 550 5700 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 400-4D/0.12-6/30/AL Axis-P 400-4D/0.12-6/30/AL
400 120 3450 6 30 Aluminium
Blauberg Axis-P 400-4D/0.12-6/30/PAG Axis-P 400-4D/0.12-6/30/PAG
400 120 3450 6 30 Fiberglass reinforced polyamide
Blauberg Axis-P 450-2D/0.75-6/25/AL Axis-P 450-2D/0.75-6/25/AL
450 750 7500 6 25 Aluminium
Blauberg Axis-P 450-2D/0.75-6/25/PAG Axis-P 450-2D/0.75-6/25/PAG
450 750 7500 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 450-4D/0.12-6/25/AL Axis-P 450-4D/0.12-6/25/AL
450 120 3700 6 25 Aluminium
Blauberg Axis-P 450-4D/0.12-6/25/PAG Axis-P 450-4D/0.12-6/25/PAG
450 120 3700 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 500-2D/1.1-6/25/AL Axis-P 500-2D/1.1-6/25/AL
500 1100 9300 6 25 Aluminium
Blauberg Axis-P 500-2D/1.1-6/25/PAG Axis-P 500-2D/1.1-6/25/PAG
500 1100 9300 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 500-4D/0.18-6/25/AL Axis-P 500-4D/0.18-6/25/AL
500 180 4600 6 25 Aluminium
Blauberg Axis-P 500-4D/0.18-6/25/PAG Axis-P 500-4D/0.18-6/25/PAG
500 180 4600 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 560-2D/1.5-6/25/AL Axis-P 560-2D/1.5-6/25/AL
560 1500 11200 6 25 Aluminium
Blauberg Axis-P 560-2D/1.5-6/25/PAG Axis-P 560-2D/1.5-6/25/PAG
560 1500 11200 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 560-4D/0.25-6/25/AL Axis-P 560-4D/0.25-6/25/AL
560 250 5600 6 25 Aluminium
Blauberg Axis-P 560-4D/0.25-6/25/PAG Axis-P 560-4D/0.25-6/25/PAG
560 250 5600 6 25 Fiberglass reinforced polyamide
Blauberg Axis-P 630-2D/3-8/25/AL Axis-P 630-2D/3-8/25/AL
630 3000 15000 8 25 Aluminium
Datasheet
Axis-P - data sheet
984 Kb
Manual
Axis-P - user's manual
2.8 Mb
BIM/CAD-models
Axis-P
4.1 Mb
