| Unit of measurement | Box-I EC 30x15-1 max | |
| Connected air duct size | mm | 300x150 |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 101 |
| Unit current | A | 0.8 |
| Maximum airflow | m3/h | 665 |
| Sound pressure level LpA at 3 m | dB(A) | 30 |
| Weight | kg | 10.3 |
| Transported air temperature (max) | °С | 50 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP54 |
| Article | - | 8061882 |
| Trademark | Blauberg | |||||
| Model | Box-I EC 30x15-1 max | |||||
| Specific energy consumption (SEC) (kWh/(m2/a)) | Cold | Average | Warm | |||
| -54.1 | A+ | -27.1 | B | -11.6 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m3/h) | 600 | |||||
| Electric power input (W) | 99 | |||||
| Reference flow rate (m3/s) | 0.117 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m3/h)) | 0.092 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Sound power level (dB(A)) | 50 | |||||
| Declared typology | RVU UVU | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 49 | 49 | 49 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||

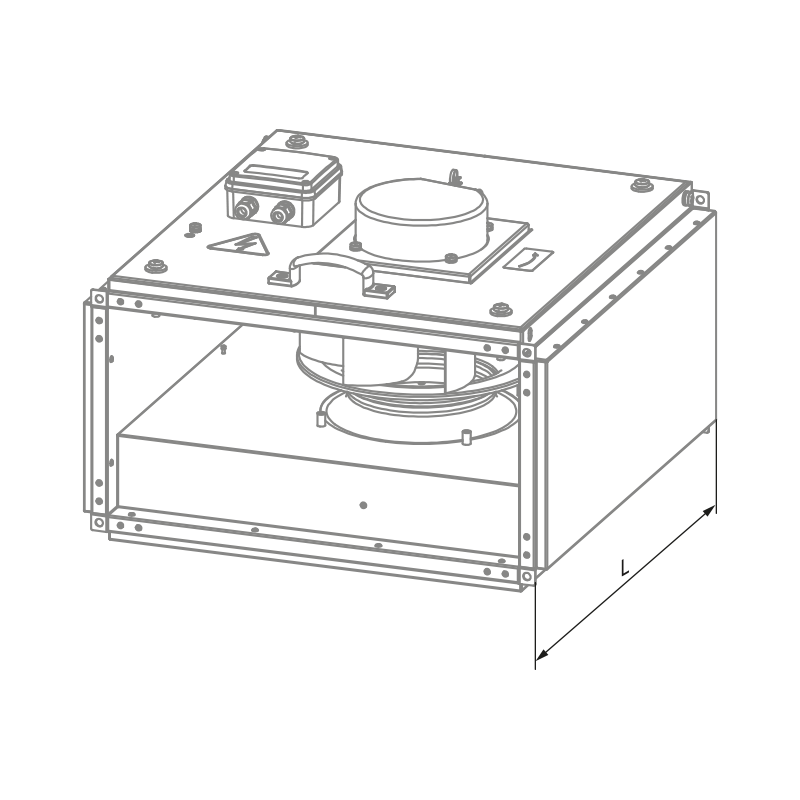

| H | H1 | H2 | H3 | L | W | W1 | W3 | W4 |
|---|---|---|---|---|---|---|---|---|
| 150 | 170 | 190 | 271 | 370 | 300 | 320 | 340 | 364 |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDT E/0-10 |
|
Speed control for EC motors |
